Waterproof Tile Over Tray Linear Grate 1500*900mm Shower Base Leak Prevention

RRP $714.00

$579.00

SAVE $135.00 (19%)

In Stock

Size 1500*900mm Self Draining Tile Tray - No Mortar Bed Required

Waterproof Ready to be tiled over.

{Custom sizes available up to 2400*1200mm with standard waste trays -please enquire}

Can Trim up To ~100mm each way- will alter cut line (contact us for details)

Features / Specification

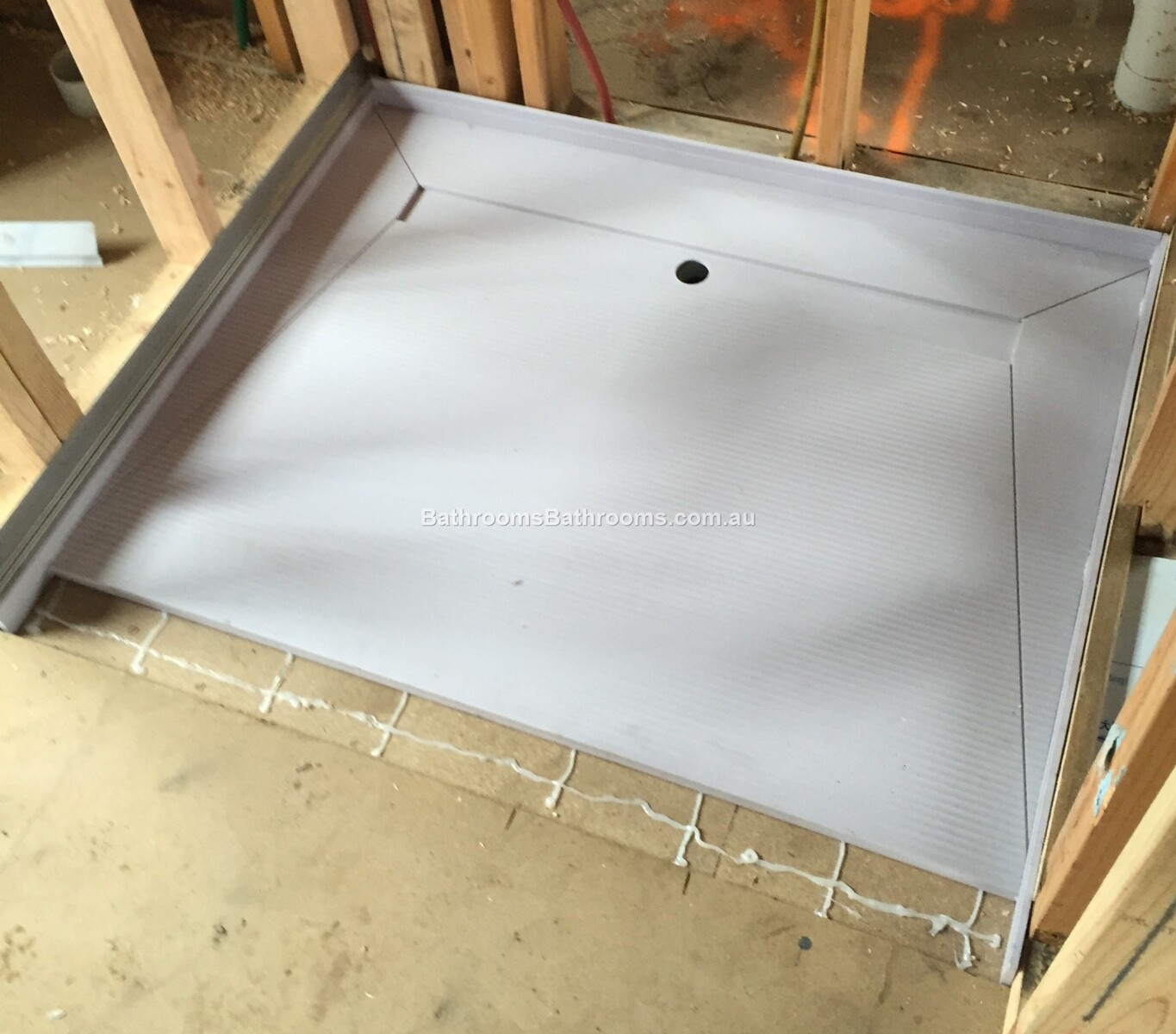

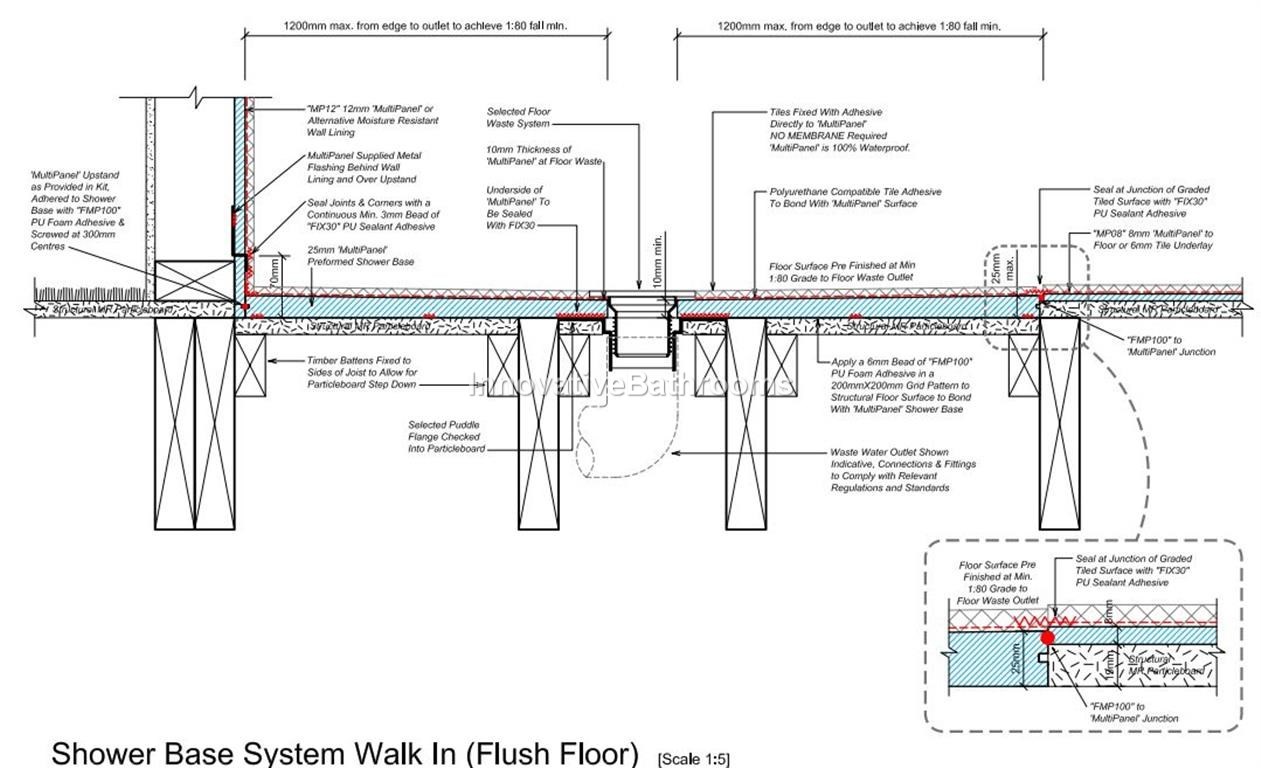

A simple, cost effective WATERPROOF solution for tiled showers. The all new shower base kit includes the base with the fall already graded, upstands, flashings and adhesives for installation convenience. Within the hour you are ready to tile your shower base, it's that simple.

Lightweight and requires no liquid membrane, the tile tray can be installed up to 80% faster than alternative Shower base systems.

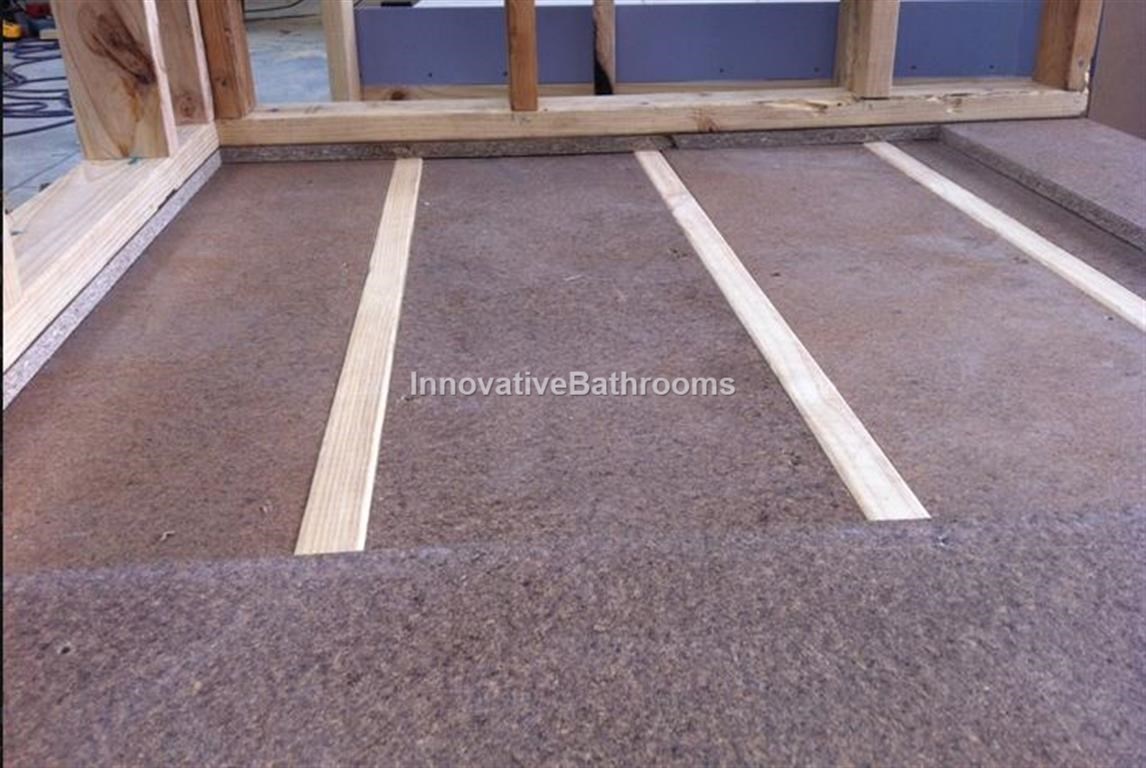

- Structually Sound- Can be installed directly to floor joist & Sub Floor

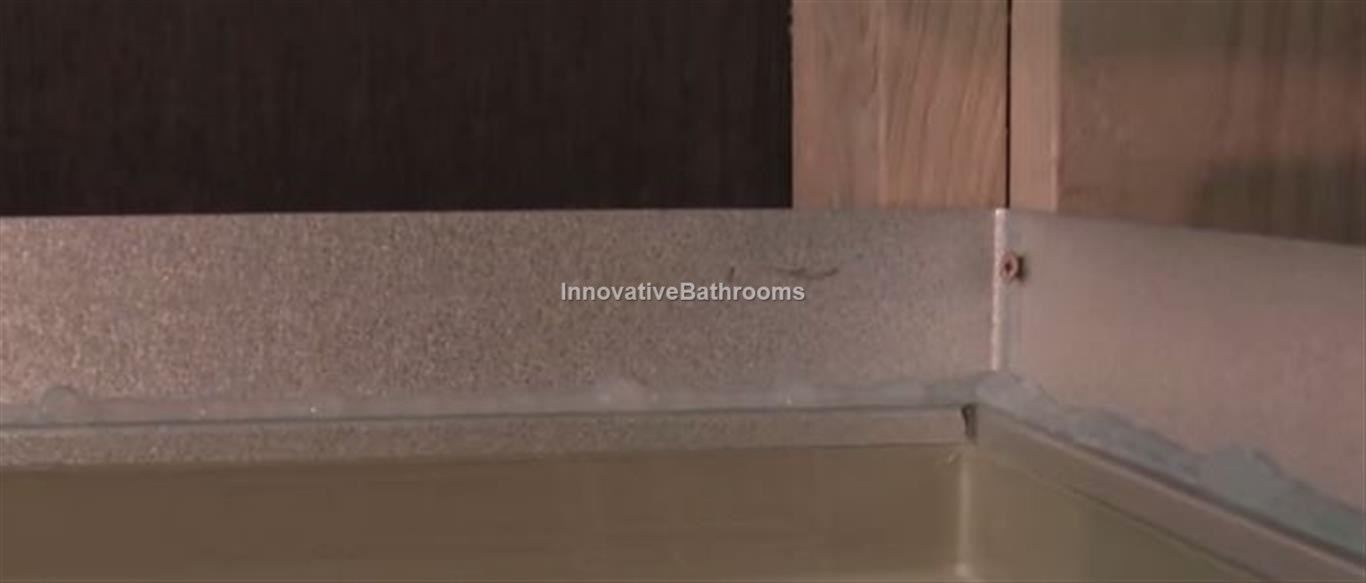

- Wall to Base Flashing Included - Wall Stud Check-in /Rebate not required
- Easy to trim tile flange lip

- Easy to re-size shower base for wall outages

- Certified to meet Australian Waterproofing Standards

- Self Draining Design With Recommended Ratio Of Fall To Waste Outlet

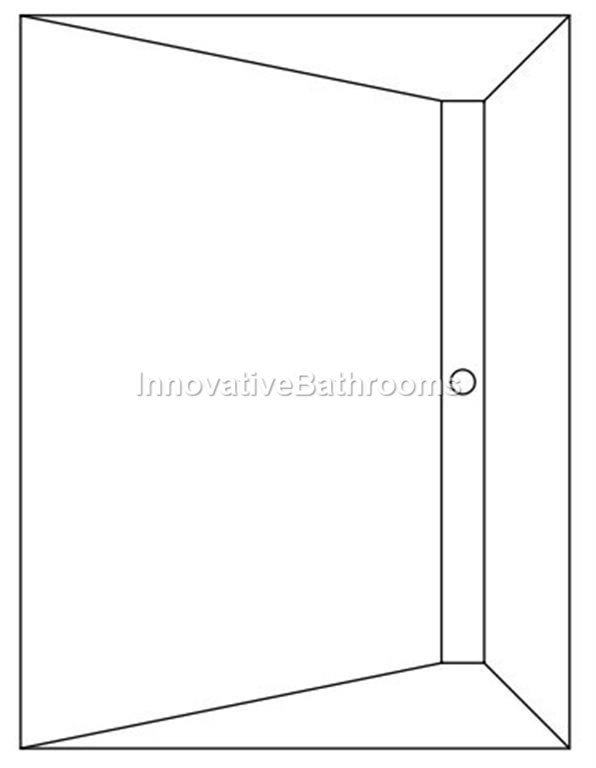

- Rear Waste, Centre Waste or Custom Position Available

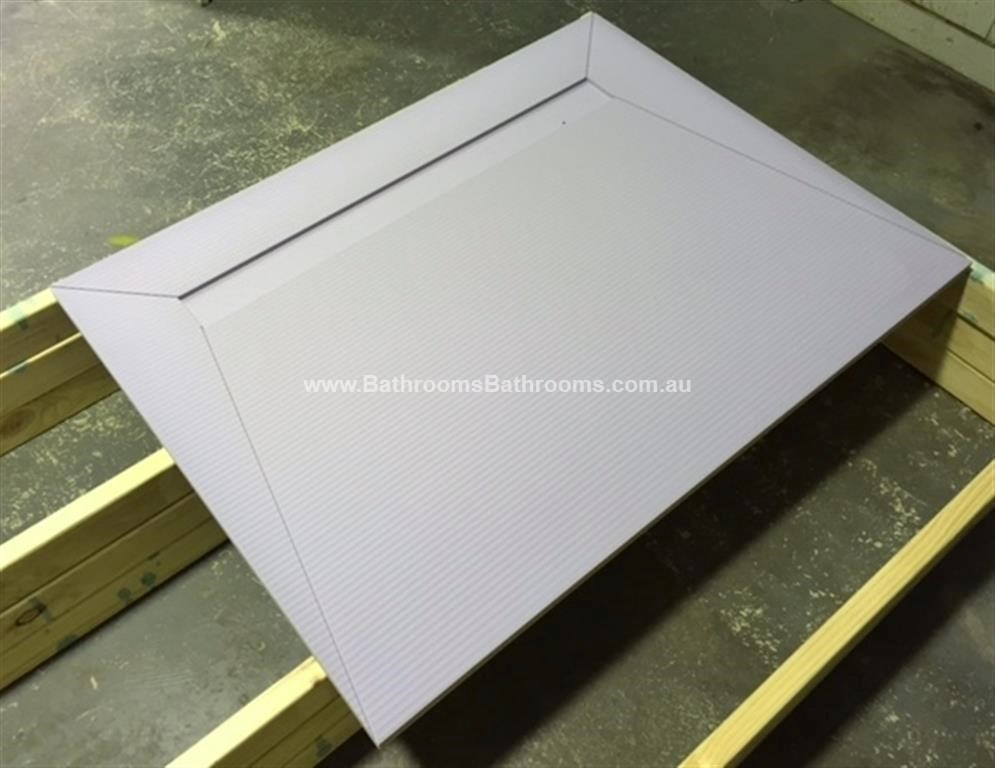

- Dimension detailed in photo: 1500 x 900 x 25 mm

- 10 Year Guarantee

Suitable Grate Dimesnions: 1200 Length x 55-70 width x 20-25 Height mm (To Be Purchase Separately)

Package Contents

Shower Tray

Flashing

Adhesive

Alternative Base Design With Chanel Waste Available: See other Listing

Call 1300 115 402 to confirm requirement prior to payment).

(MUMPLSB1590)

WELS Specification:

SKU	MUMPLSB1590
Model #	MUMPLSB1590
Barcode #	Does not apply
Brand	Innovative
Shipping Weight	34.0000kg
Shipping Width	1.500m
Shipping Height	0.100m
Shipping Length	0.900m
Shipping Cubic	0.135000000m3
Unit Of Measure	1
Assembled Length	0.900m
Assembled Height	0.025m
Assembled Width	1.500m
