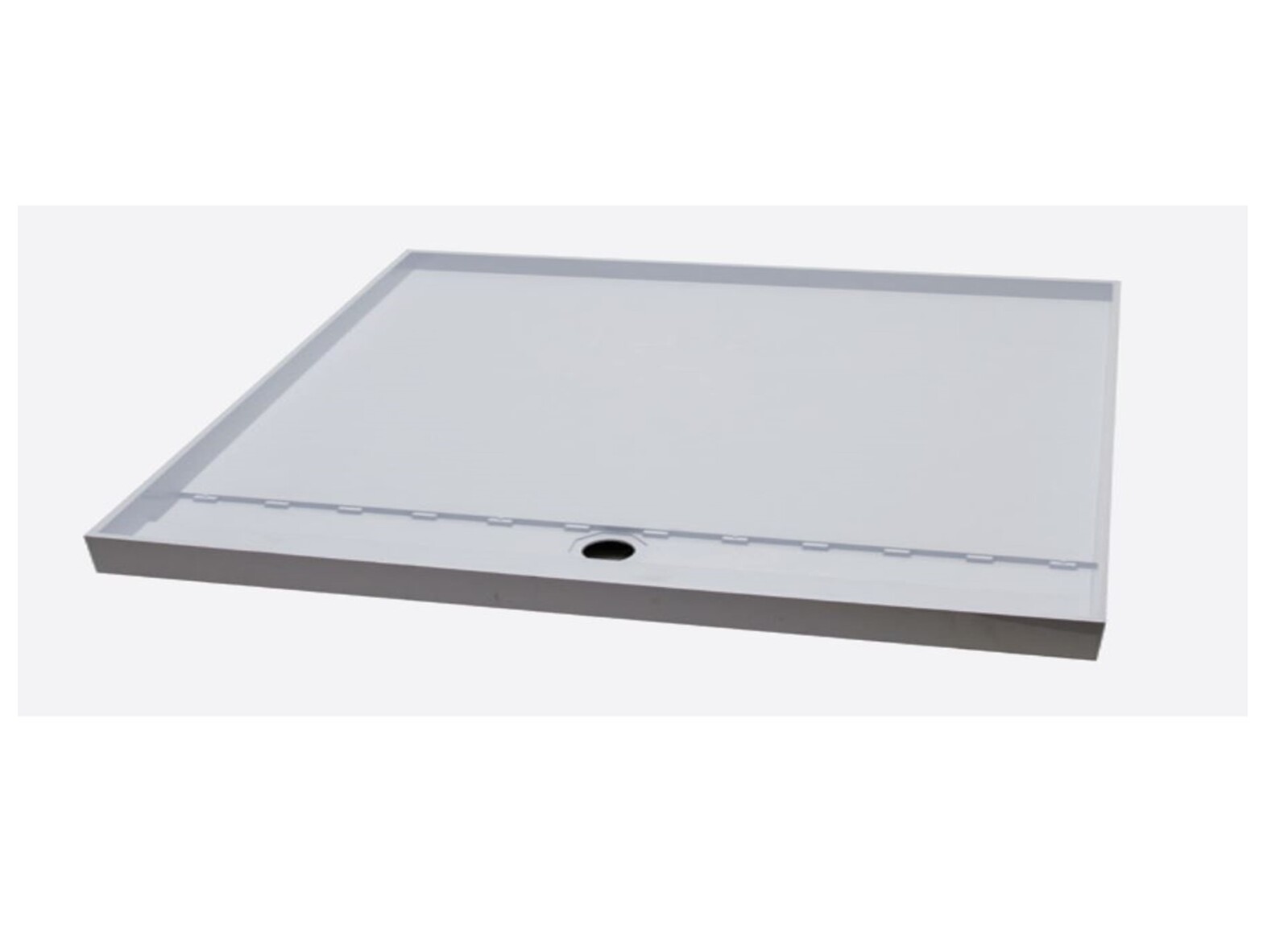

Waterproofing Shower Tile Over Tray 1200*900mm Leak Prevention Base NO GRATE
Features / Specification
A simple, cost effective WATERPROOF solution for tiled showers. The all new shower base includes the base with the fall already graded.
Requires no liquid membrane, faster installation than traditional screeded shower base systems.
-Can be installed directly onto joists
-Manufactured in Australia
-Does not require water proofing membrane
-Built-in fall for drainage
-Waterproof tray system that wont leak

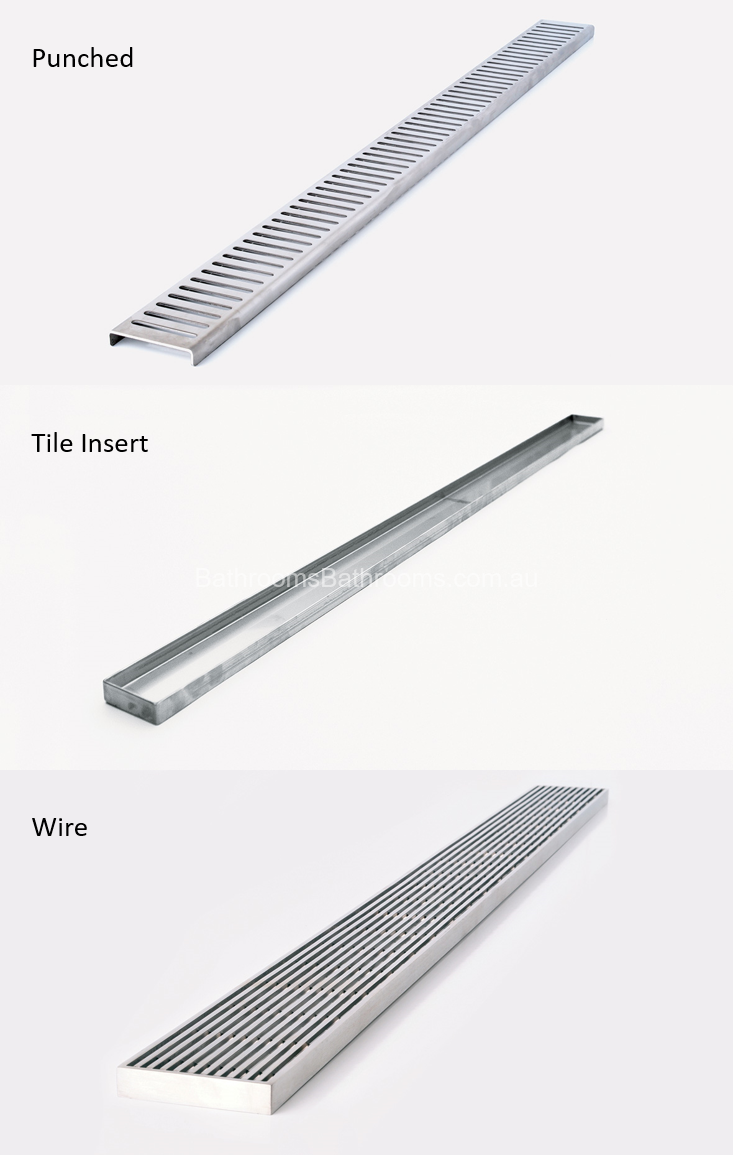

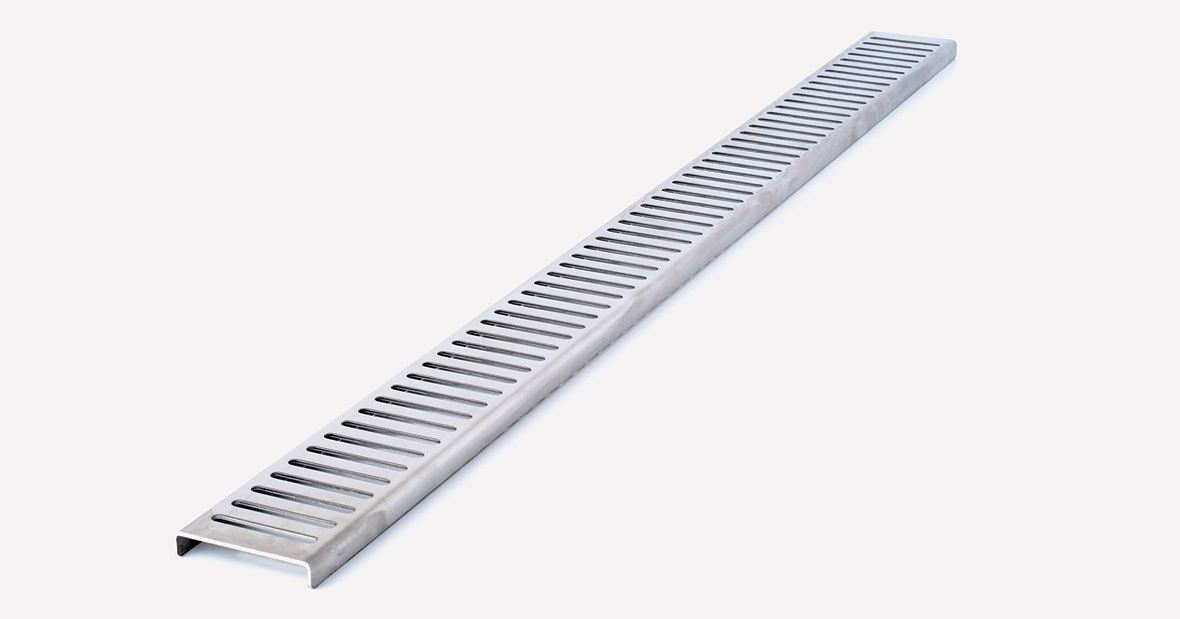

-Multiple waste & grate options available
-10 Year guarantee
-Watermarkcertification

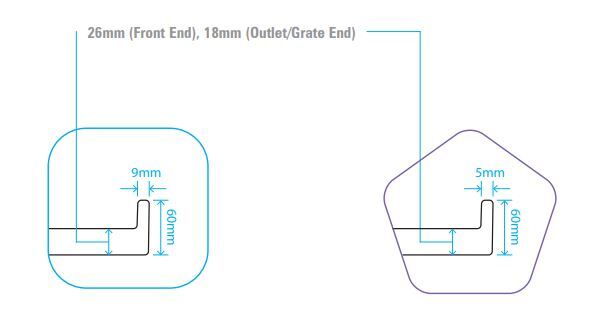

-Tray flange easy to trim down to suit all tiling heights
-Sanitary grade suitable for all wet areas
Not only are these Tile Over Shower Trays ideal for tight spaces, due to their pre-formed design, but they are also a great feature in more elaborate bathroom design projects.
Easy to install and high-quality, you can be confident that the Tile Tray system will meet both your construction and design needs. Why not try the rear grate option, which offers a modern look without the costly price tag.
The Self supporting Tile Tray is manufactured using a high strength long glass fibre composite material designed and developed specifically for use in shower trays.
Produced by Australia’s largest manufacturer of advanced composite materials and recognised as the global leader in this technology.

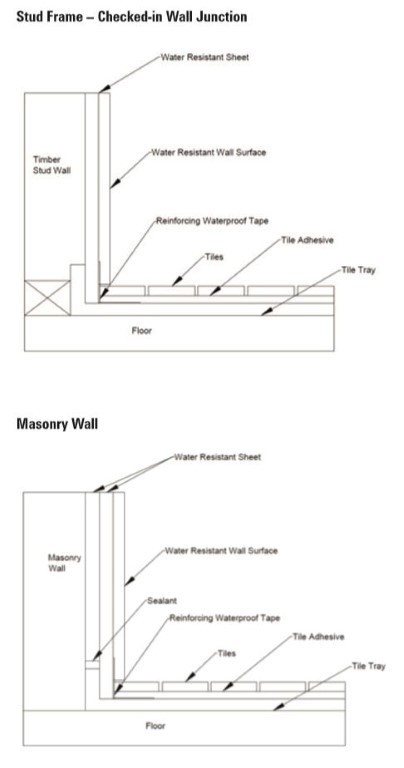

- Installed directly on to joist with a built-in fall to the drain
- Glue tiles directly to the tile tray – no primer needed
- Manufactured from water proof material
- Makes installing a tiled shower base quick and easy
- Suits all tiles

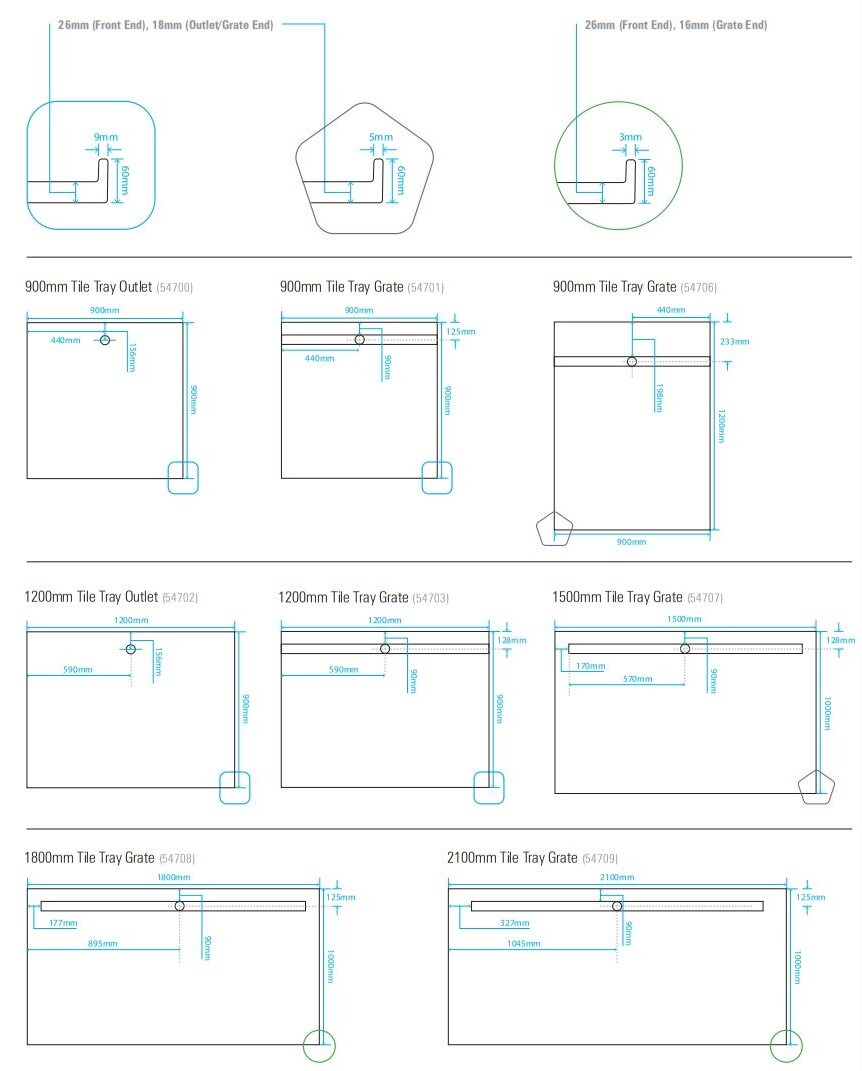

Sizes Available (See other Listings):
|
Rear Outlet design Tile Trays |
Grate Design Tile Trays |
|
900 x 900mm Rear Outlet |
900 x 900mm Rear Grate |
|

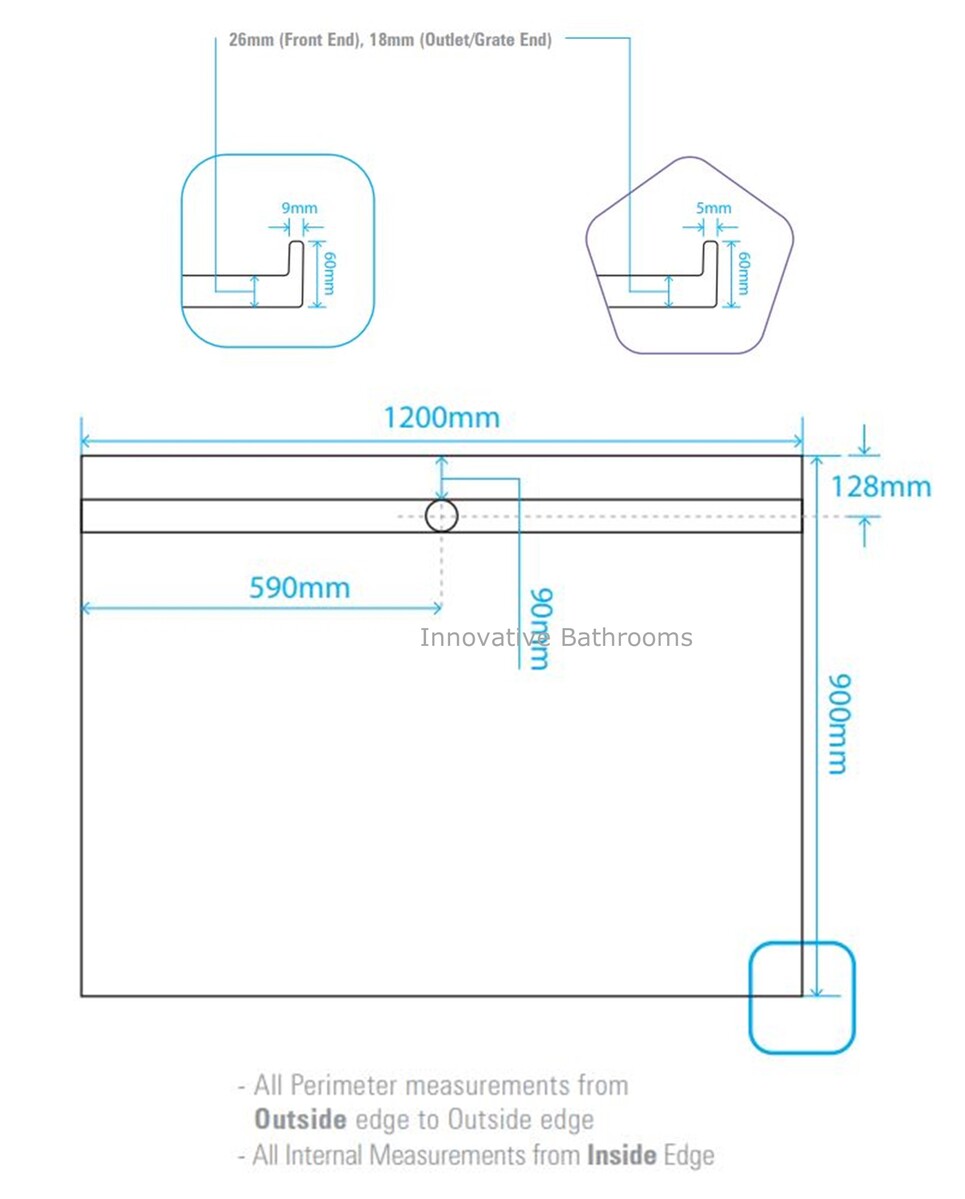

1200 x 900mm Rear Outlet |
1200 x 900mm Rear Grate |
|
900 x 1200mm Rear Grate |
|
|
1500 x 1000mm Rear Grate |
|
|
1800 x 1000mm Rear Grate |
|
|
2100 x 1000mm Rear Grate |
Package Contents
(CM30745-XXX)
Features / Specification
A simple, cost effective WATERPROOF solution for tiled showers. The all new shower base includes the base with the fall already graded.
Requires no liquid membrane, faster installation than traditional screeded shower base systems.
-Can be installed directly onto joists
-Manufactured in Australia
-Does not require water proofing membrane
-Built-in fall for drainage
-Waterproof tray system that wont leak
-Multiple waste & grate options available
-10 Year guarantee
-Watermarkcertification
-Tray flange easy to trim down to suit all tiling heights
-Sanitary grade suitable for all wet areas
Not only are these Tile Over Shower Trays ideal for tight spaces, due to their pre-formed design, but they are also a great feature in more elaborate bathroom design projects.
Easy to install and high-quality, you can be confident that the Tile Tray system will meet both your construction and design needs. Why not try the rear grate option, which offers a modern look without the costly price tag.
The Self supporting Tile Tray is manufactured using a high strength long glass fibre composite material designed and developed specifically for use in shower trays.
Produced by Australia’s largest manufacturer of advanced composite materials and recognised as the global leader in this technology.
- Installed directly on to joist with a built-in fall to the drain
- Glue tiles directly to the tile tray – no primer needed
- Manufactured from water proof material
- Makes installing a tiled shower base quick and easy
- Suits all tiles
Sizes Available (See other Listings):
|
Rear Outlet design Tile Trays |
Grate Design Tile Trays |
|
900 x 900mm Rear Outlet |
900 x 900mm Rear Grate |
|
1200 x 900mm Rear Outlet |
1200 x 900mm Rear Grate |
|
900 x 1200mm Rear Grate |
|
|
1500 x 1000mm Rear Grate |
|
|
1800 x 1000mm Rear Grate |
|
|
2100 x 1000mm Rear Grate |
| SKU | CM30745-XXX |
| Model # | 54703-NOGRATE |
| Barcode # | Does not apply |
| Brand | Innovative |
| Shipping Weight | 25.0000kg |
| Shipping Width | 0.910m |
| Shipping Height | 0.070m |
| Shipping Length | 1.240m |
| Shipping Cubic | 0.078988000m3 |
| Unit Of Measure | 1 |
| Assembled Length | 1.200m |
| Assembled Height | 0.060m |
| Assembled Width | 0.900m |
7 Year Manfacturers Guarantee
